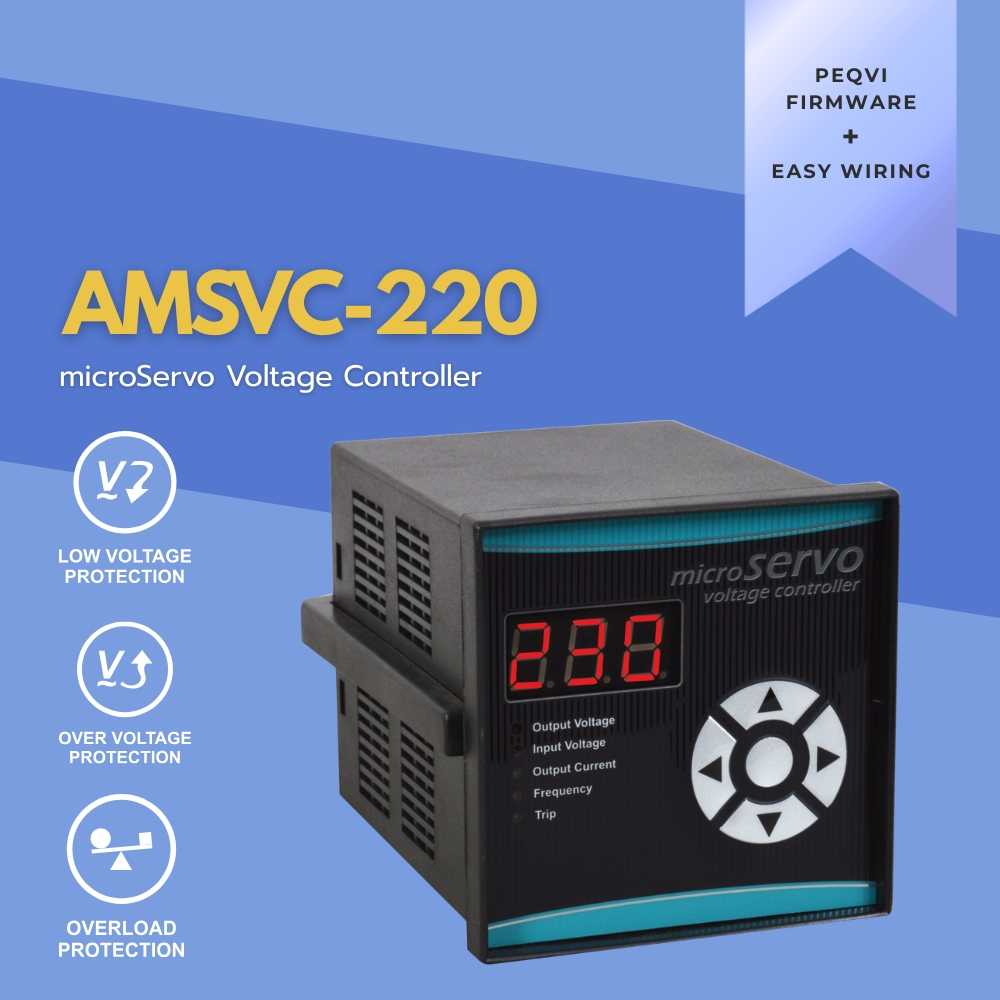

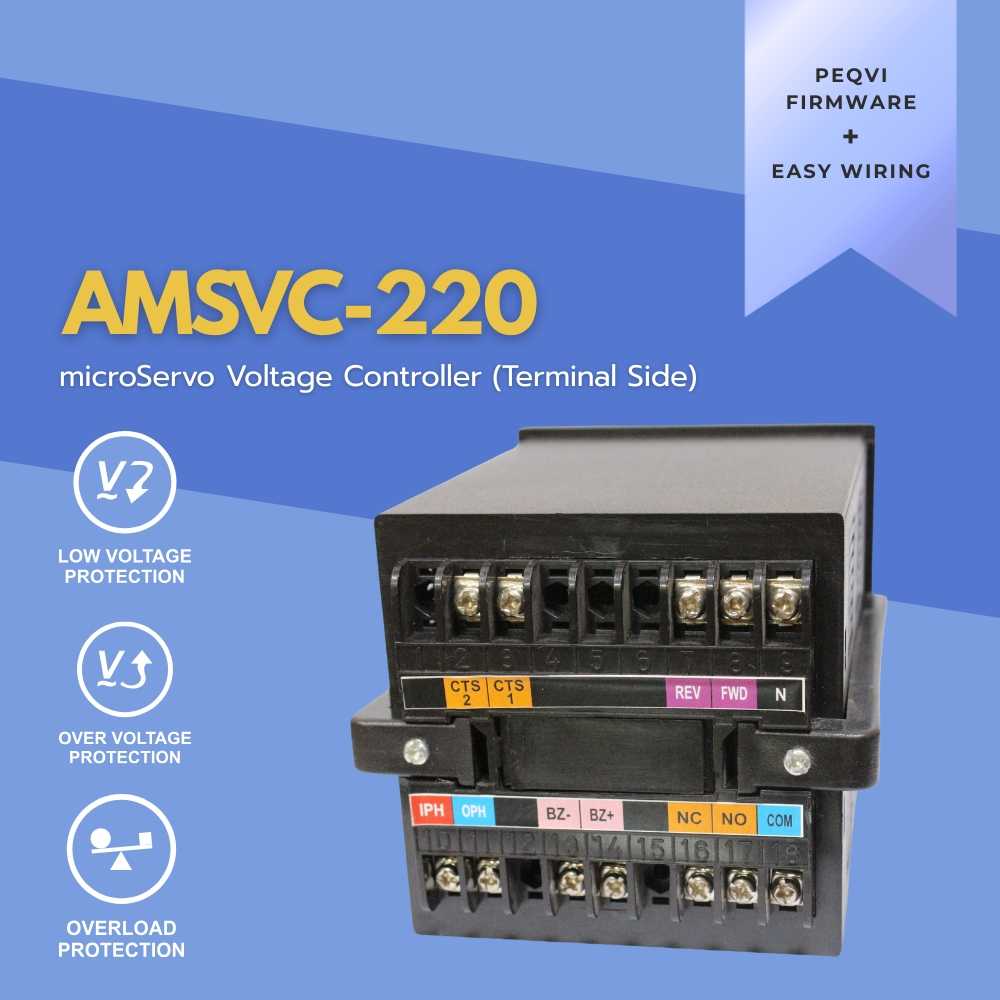

Digital Single Phase Servo Control Card Module (AMSVC-220)

The AMSVC-220 is a compact, microcontroller-based single-phase servo control card designed to simplify wiring, speed up production, and deliver accurate voltage regulation in servo stabilizers. Built on advanced PIC technology and fully manufactured in India, it offers stable performance, intelligent protections, and an integrated servo motor drive—ideal for modern stabilizer manufacturers.

Features

• Microcontroller-based digital controller for single-phase servo stabilizers
• Integrated drive for AC synchronous servo motor
• Bright 3-digit, 7-segment LED display
• Displays Input Voltage, Output Voltage, Output Current, Frequency & Temperature
• Auto-trip for Under-Voltage, Over-Voltage & Over-Load (with time delay)
• Selectable tripping modes: Contactor / Relay / Shunt
• Audio + Visual alarms for quick fault indication
• Manual mode for testing and field service
• Optional oil-temperature sensor
• Supports 110V systems (110 series models)
• Password-protected programming (2-level security)

 User-Programmable Settings

• Under / Over Voltage
• Over-Load Limit
• Time Delay
• Output Voltage Set-Point
• Sensitivity
• CT Ratio
• Tripping Type
• Variable Display
• Start-up Delay

Why Choose AMSVC-220?

The AMSVC-220 reduces wiring hassles, lowers production time, and offers consistent performance—making it a reliable upgrade or replacement for standard digital servo control cards and single-phase stabilizer control cards available in the market. Perfect for manufacturers looking for a smart, integrated voltage stabilizer controller.
