Description

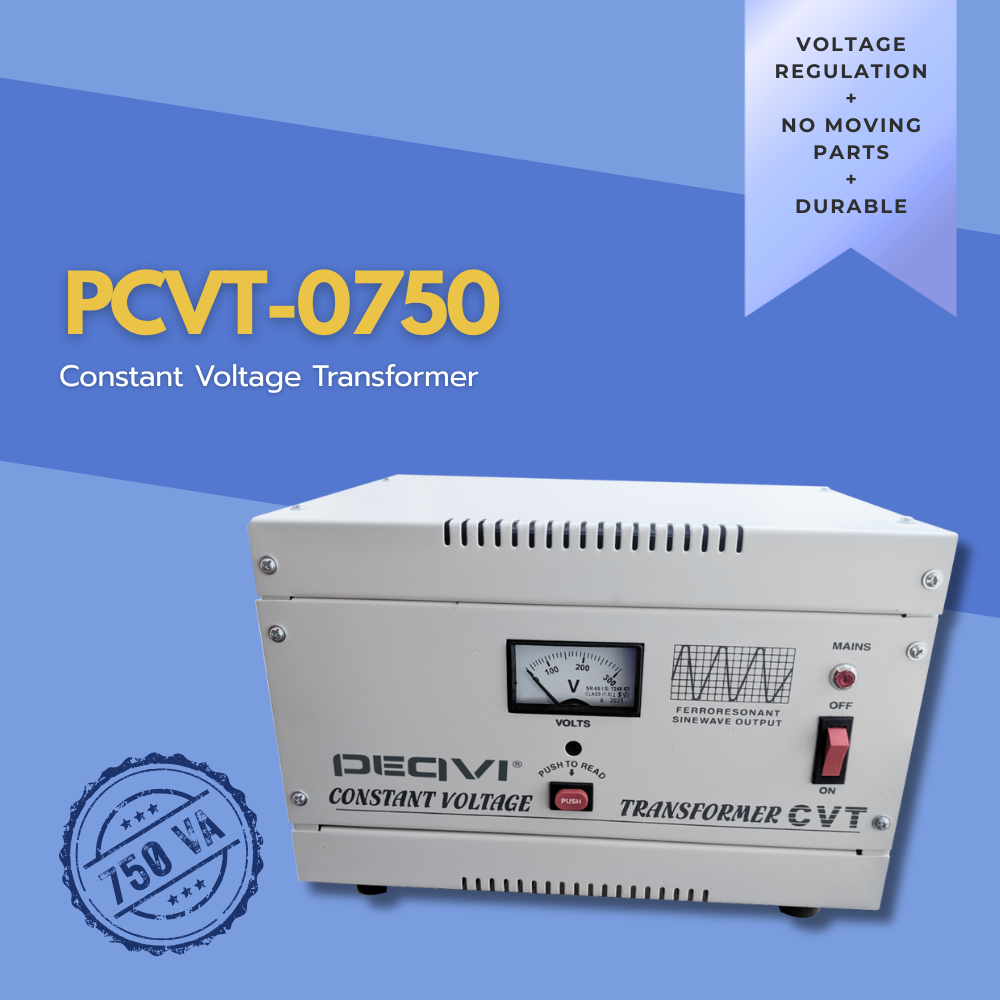

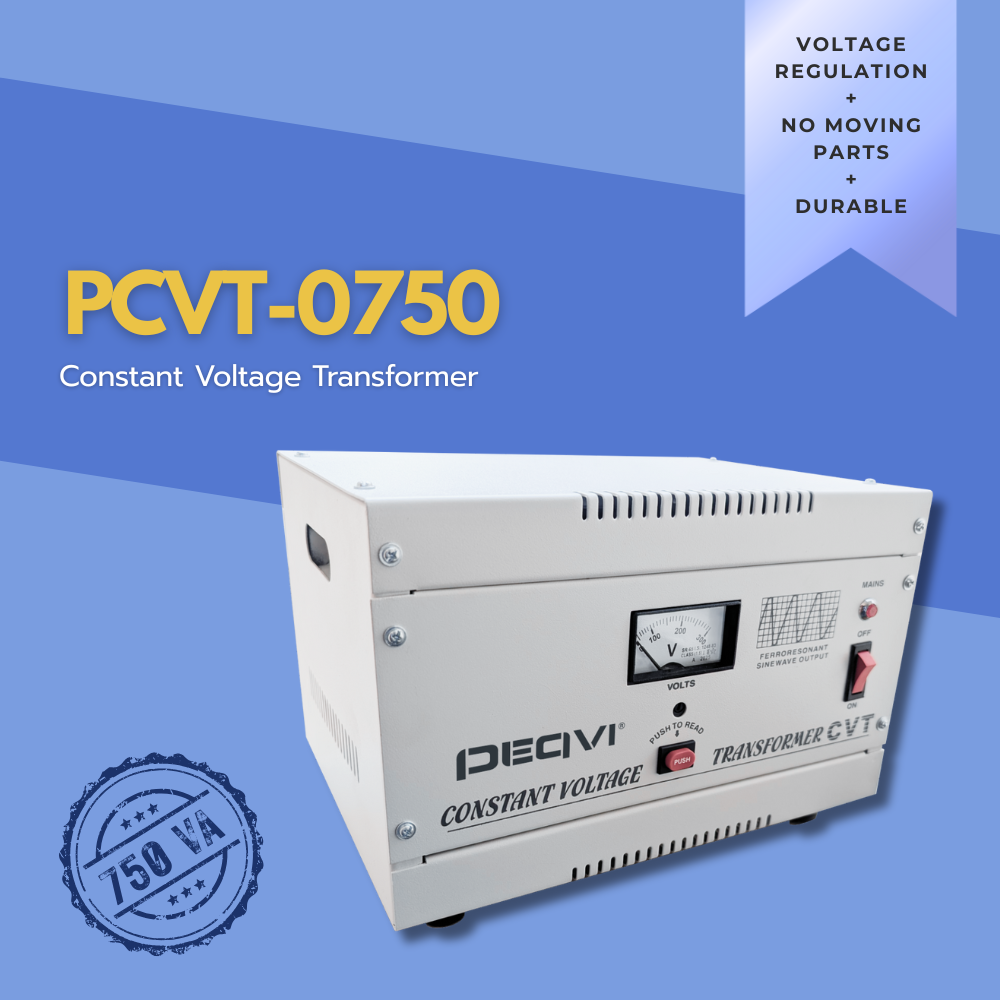

xThe PEQVI Constant Voltage Transformer Single Phase 750 VA (Model PCVT-0750) is engineered to deliver reliable, distortion-free output voltage for industrial automation, medical instruments, and precision laboratory equipment. Its design provides clean, isolated power supply to protect sensitive electronics from surges, noise, and voltage fluctuations.
Built for superior efficiency and long service life, the PEQVI PCVT-0750 ensures steady performance under varying load and frequency conditions. Ideal for diagnostic clinics, testing labs, dental setups, and optical instrument stations, it enhances safety and stability for critical electronic devices.
Technical Specifications
| Type | Dry |
|---|---|
| Frequency | 50 Hz ± 1% |
| Input Voltage | 180–260 V at rated load |
| Output Voltage | 220V ± 1% |
| Response Time | 30 milliseconds |
| Efficiency | Approx. 90% under full load |
| Output Waveform | Sinusoidal |
| Waveform Distortion | < 4% under full load |
| Load Power Factor | 0.75 lag to 0.9 lead |
| Ambient Temperature | -5°C to +50°C |
| Effect of Line Frequency | Approx. 1.5% change in output for 1% change in input frequency |
| Phase | Single Phase |
| Model No | PCVT-0750 |
| Type of Product | Constant Voltage Transformer |
| Power Rating | 750 VA |
| Country of Origin | India |
| Manufacturer | PEQVI |
Features
- High reliability due to absence of semiconductors and moving parts.
- Stable sine-wave output irrespective of input waveform quality.
- Fast voltage regulation and excellent transient suppression.
- Complete mains isolation for enhanced equipment safety.
- Intrinsic current limiting with short-circuit and overload protection.
- Robust design suited for industrial, medical, and laboratory use.
- Operates efficiently with minimal noise and heat generation.
Recommendations
- Keep CVT away from sensitive magnetic or calibration equipment.
- Always connect via 3-pin socket to ensure proper earthing.
- Switch ON the CVT before connected devices and switch OFF in reverse sequence.
- Avoid using with inductive loads such as motors, pumps, or compressors.
- Confirm generator frequency is within 50 ± 1 Hz before connecting.
- Turn off the CVT during idle hours to improve operational life.
