Description

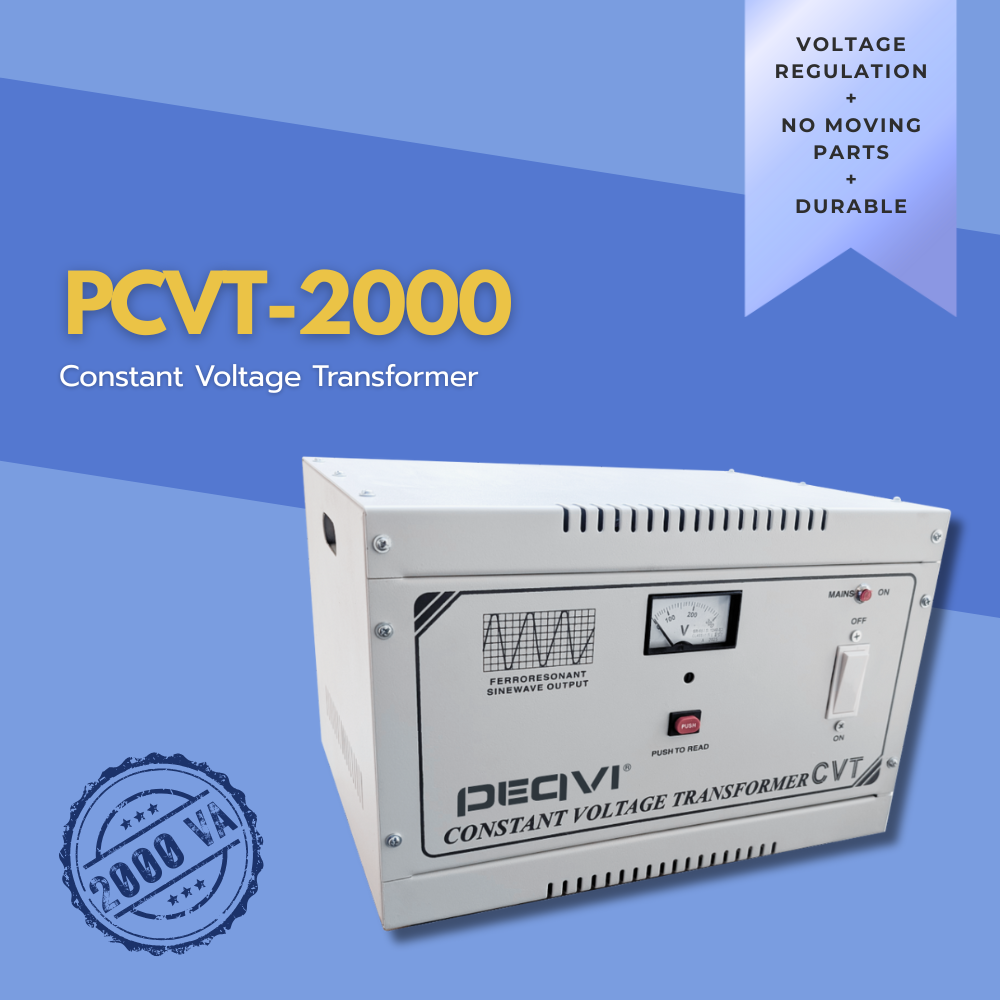

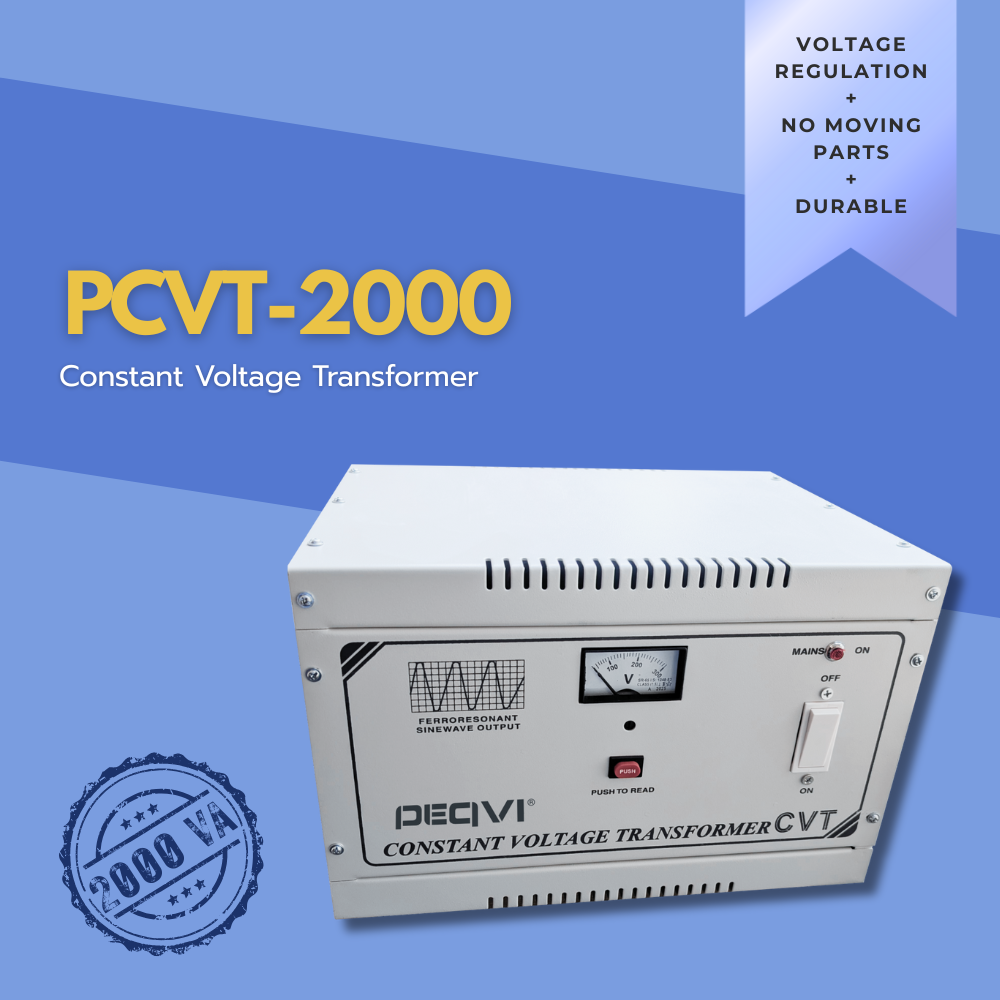

xThe PEQVI Constant Voltage Transformer 2 KVA (Model PCVT-2000) is engineered for demanding environments where power stability is vital. Ideal for medical analyzers, automation panels, testing labs, and optical setups, it delivers clean, isolated, and distortion-free voltage supply even during wide input fluctuations.
Its heavy-duty construction ensures long-term reliability, while the efficient magnetic coupling provides fast response and excellent protection from electrical transients and noise.
Technical Specifications
| Type | Dry |
|---|---|
| Frequency | 50 Hz ± 1% |
| Input Voltage | 180–260 V at rated load |
| Output Voltage | 220 V ± 1% |
| Response Time | 30 milliseconds |
| Efficiency | Approx. 90% under full load |
| Output Waveform | Sinusoidal |
| Waveform Distortion | < 4% |
| Load Power Factor | 0.75 lag to 0.9 lead |
| Ambient Temperature | -5 °C to +50 °C |
| Phase | Single Phase |
| Model No. | PCVT-2000 |
| Power Rating | 2 KVA |
| Country of Origin | India |
| Manufacturer | PEQVI |
Features
- High-capacity voltage regulation up to 2 KVA.
- Superior isolation for transient and noise suppression.
- Intrinsic current limiting with short-circuit protection.
- Instantaneous voltage correction and overload tolerance.
- Compact, low-noise, and thermally optimized enclosure.
- Ideal for laboratories, clinics, and industrial automation.
Recommendations
- Install away from magnetic or precision measurement devices.
- Connect via 3-pin socket with proper earthing.
- Operate CVT before switching ON connected devices.
- Do not use for inductive or motor loads.
- Turn OFF during idle hours to preserve efficiency.
