Description

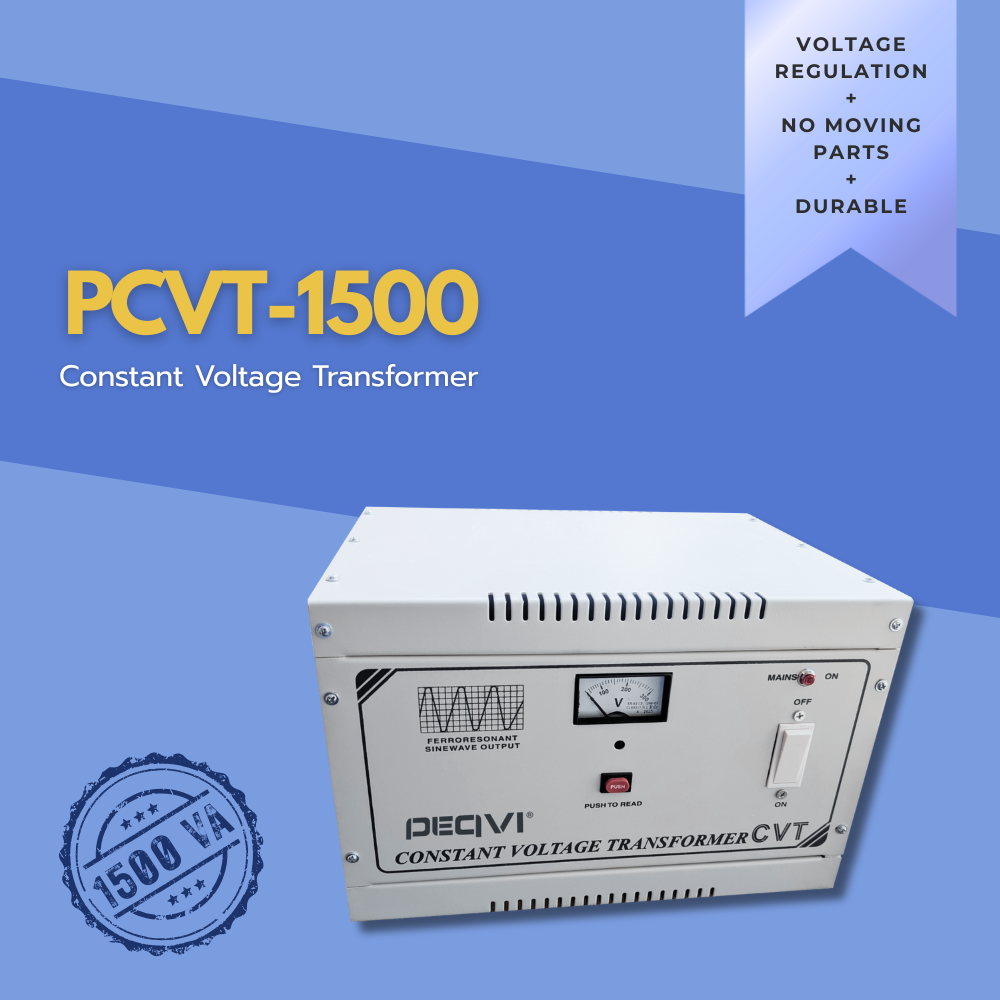

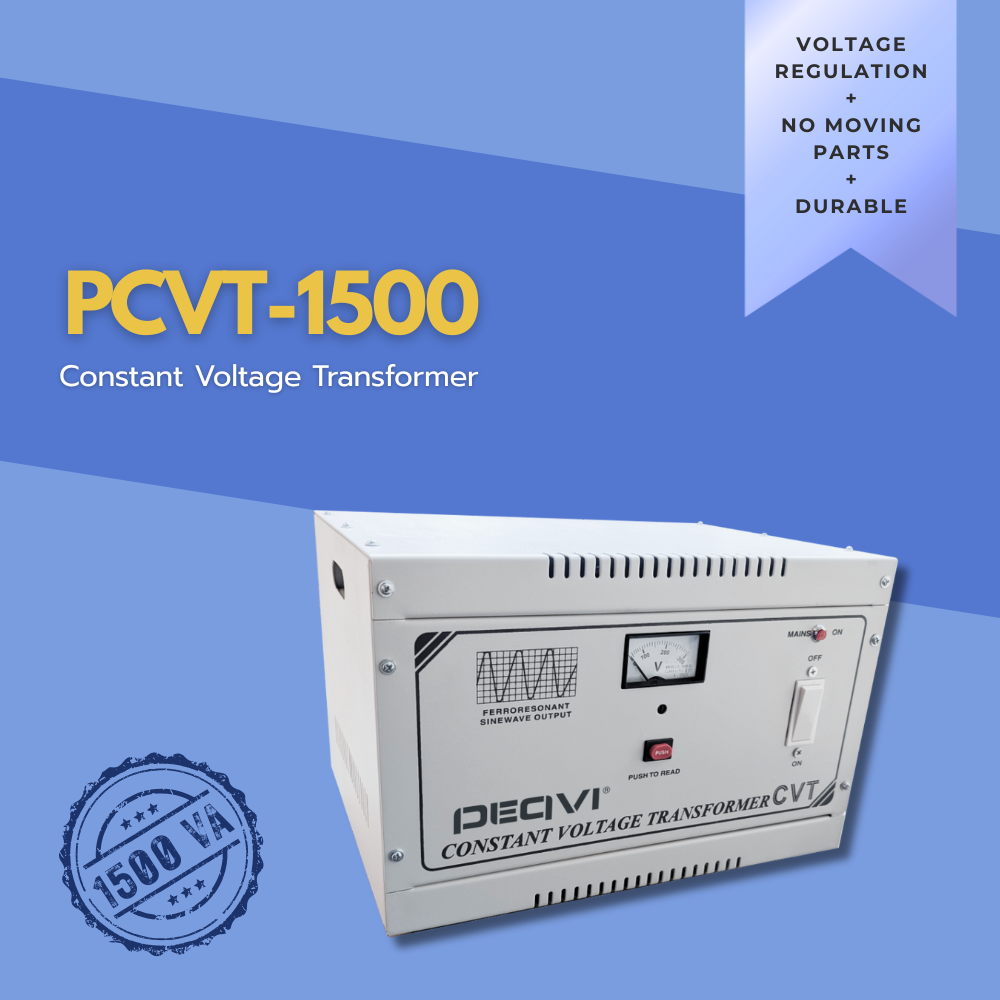

xThe PEQVI PCVT-1500 Constant Voltage Transformer provides high-capacity power stabilization up to 1.5 KVA. Designed for diagnostic centers, automation systems, and laboratories, it ensures constant voltage output with fast correction against input variations, transients, and harmonics.
Its advanced magnetic design offers superior efficiency, galvanic isolation, and minimal waveform distortion, protecting critical instruments from electrical disturbances.
Technical Specifications
| Type | Dry |
|---|---|
| Frequency | 50 Hz ± 1% |
| Input Voltage | 180–260 V at rated load |
| Output Voltage | 220V ± 1% |
| Response Time | 30 milliseconds |
| Efficiency | Approx. 90% under full load |
| Output Waveform | Sinusoidal |
| Waveform Distortion | < 4% |
| Load Power Factor | 0.75-5 °C to +50 °Clag to 0.9 lead |
| Ambient Temperature | |
| Phase | Single Phase |
| Model No. | PCVT-1500 |
| Power Rating | 1.5 KVA |
| Country of Origin | India |
| Manufacturer | PEQVI |
Features
- Fast, precise voltage correction.
- High isolation from mains for surge suppression.
- Reliable design with no semiconductors.
- Built-in current limiting and overload protection.
- Quiet operation and minimal waveform distortion.
- Best suited for industrial control and medical setups.
Recommendations
- Place away from strong magnetic instruments or monitors.
- Use a 3-pin socket with proper earth connection.
- Turn ON CVT first, then load; switch OFF in reverse.
- Not suitable for inductive or motor-type loads.
- Turn OFF when idle to enhance service life.
