Description

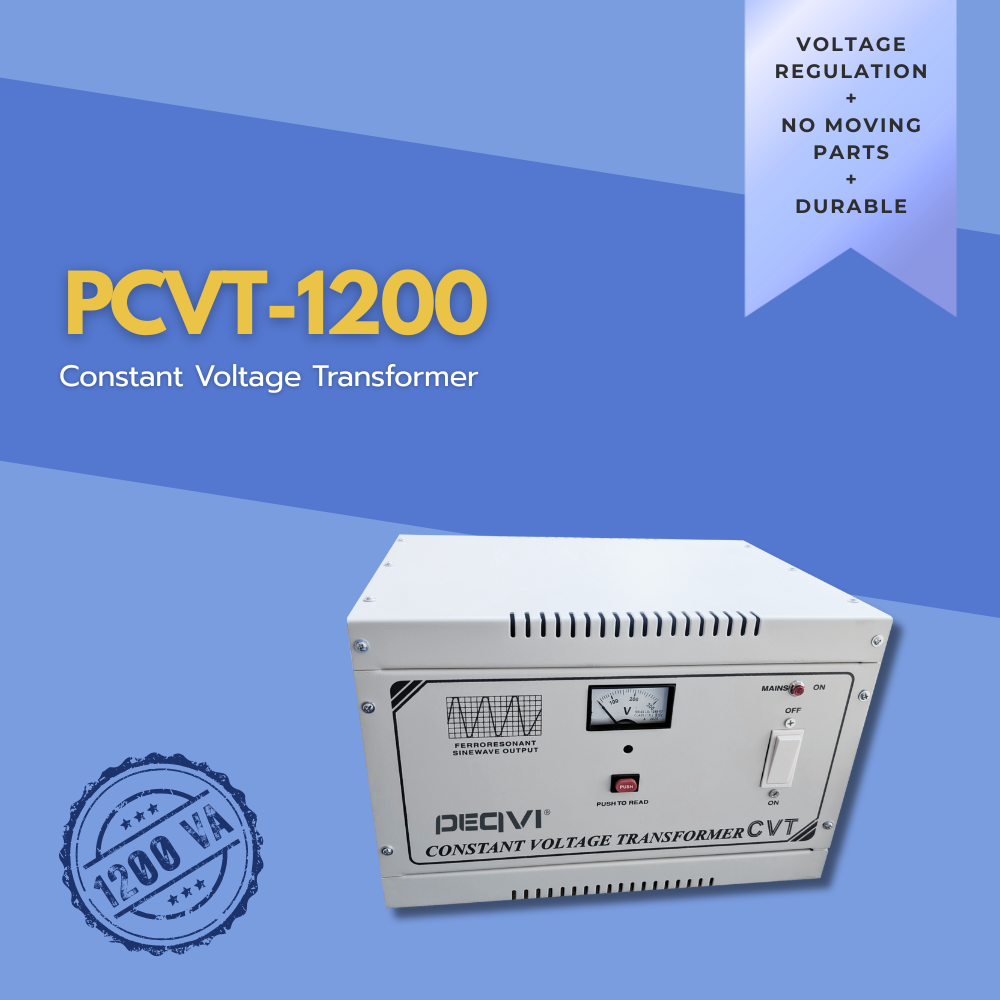

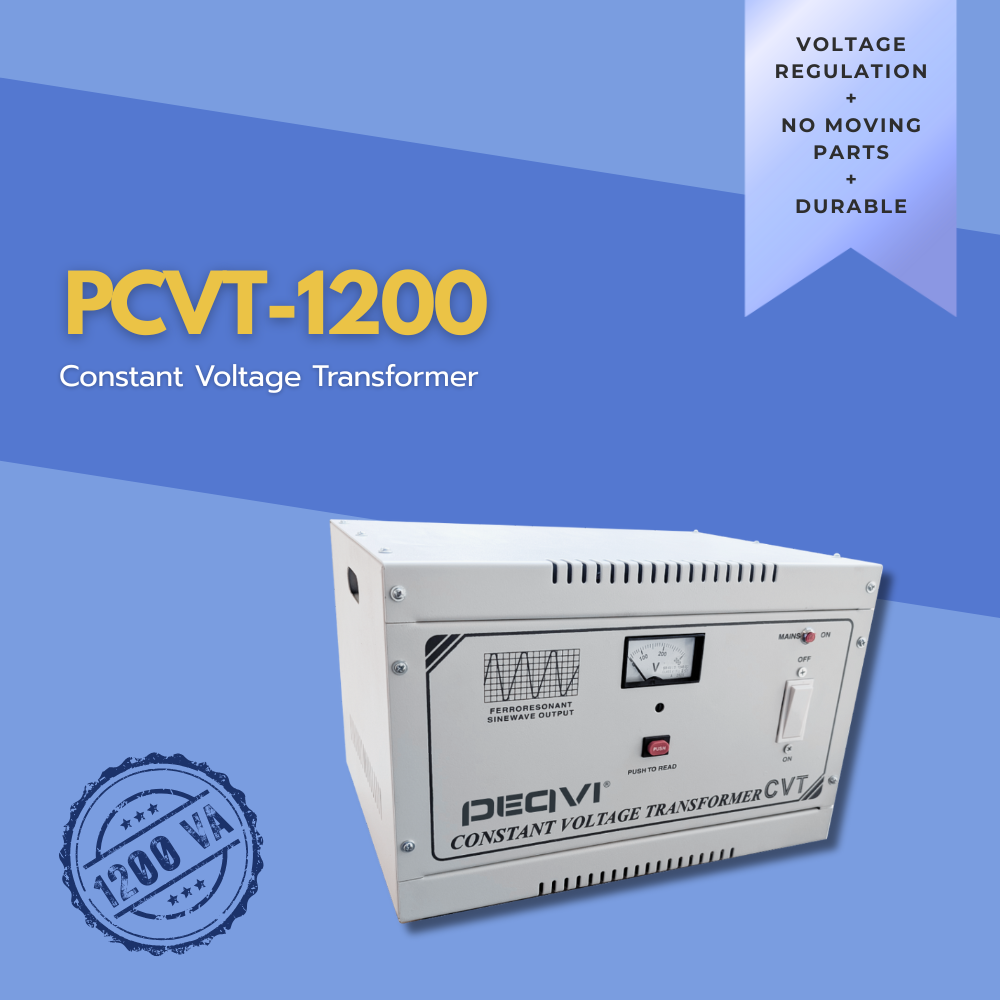

xPEQVI PCVT-1200 Constant Voltage Transformer delivers stable 230 V output for medical labs, optical equipment, and industrial automation. Rated at 1.2 KVA, it ensures continuous protection from surges and sags while maintaining low noise and minimal waveform distortion.
Built with a dry-type design, it provides efficient regulation, galvanic isolation, and dependable performance for critical operations where voltage precision is essential.
Technical Specifications
| Type | Dry |
|---|---|
| Frequency | 50 Hz ± 1% |
| Input Voltage | 180–260 V at rated load |
| Output Voltage | 220 V ± 1% |
| Response Time | 30 milliseconds |
| Efficiency | Approx. 90% under full load |
| Output Waveform | Sinusoidal |
| Waveform Distortion | < 4% |
| Load Power Factor | 0.75 lag to 0.9 lead |
| Ambient Temperature | -5 °C to +50 °C |
| Phase | Single Phase |
| Model No. | PCVT-1200 |
| Power Rating | 1.2 KVA |
| Country of Origin | India |
| Manufacturer | PEQVI |
Features
- Instantaneous voltage regulation.
- Output isolation to suppress spikes and noise.
- Intrinsic current limiting and overload handling.
- Highly efficient magnetic design with low distortion.
- Perfect for ophthalmic, testing, and precision instrumentation.
Recommendations
- Keep CVT away from strong magnetic fields or calibration tools.
- Ensure proper grounding through a 3-pin connection.
- Follow the ON/OFF sequence to protect connected equipment.
- Do not connect inductive or motor loads.
- Switch OFF when not in operation.
