Description

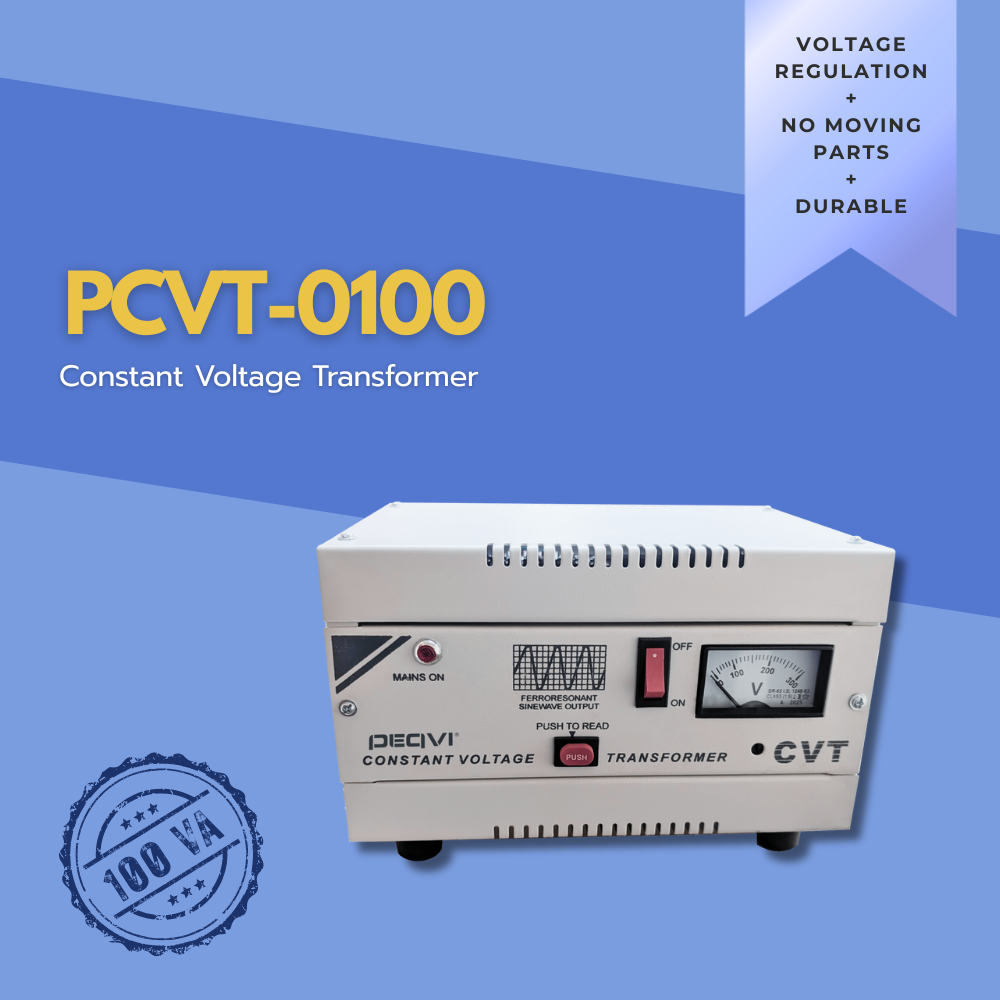

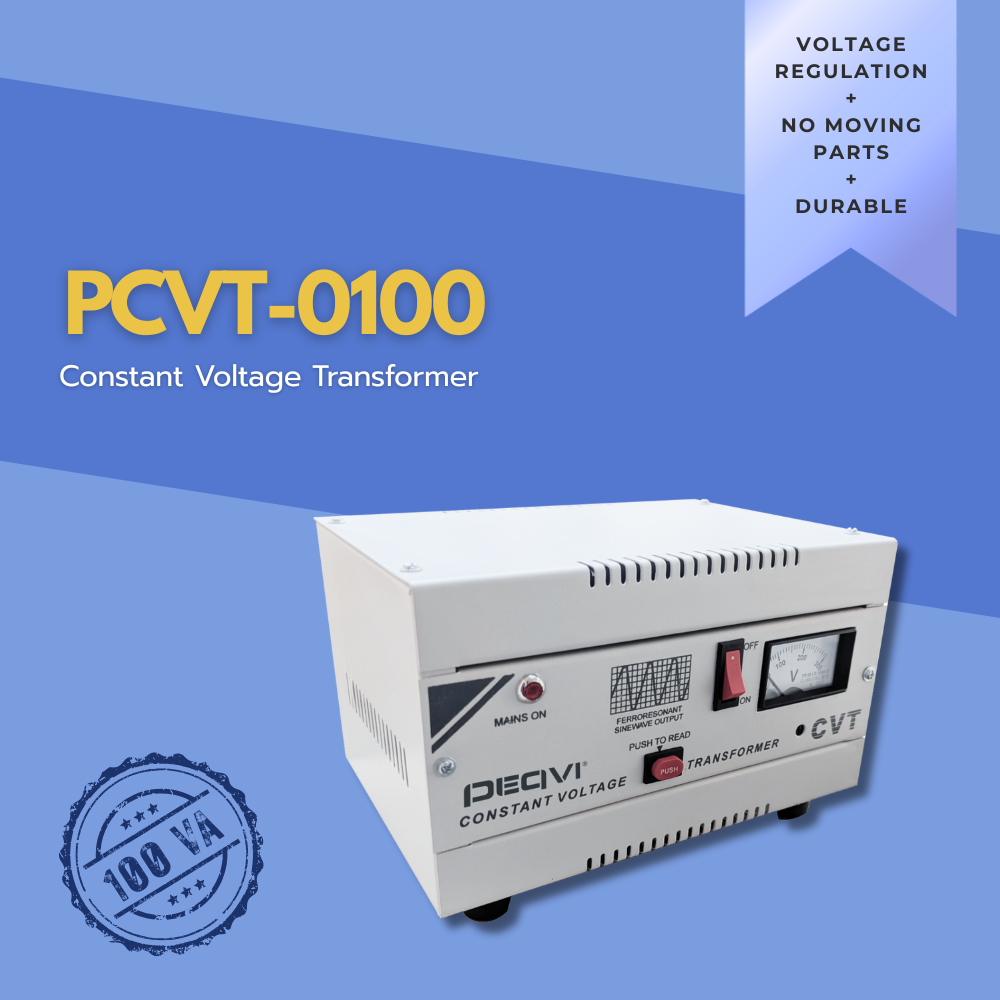

xThe PEQVI Constant Voltage Transformer 100 VA (model PCVT-0100) is designed to provide clean, stable power for small yet sensitive electronic equipment. Ideal for computers, testing instruments, telecom units, and precision devices, this compact CVT ensures smooth and consistent voltage output even under fluctuating mains conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Input Voltage | 180–260 V (at rated load) |
| Output Voltage | 220V ± 1% |
| Frequency | 50 Hz ±1% |
| Response Time | 30 milliseconds |
| Efficiency | Approx. 90% at full load |
| Output Waveform | Sinusoidal |
| Waveform Distortion | < 4% under full load |
| Load Power Factor | 0.75 lag to 0.9 lead |
| Ambient Temperature | –5°C to 50°C |
| Effect of Line Frequency | ~1.5% output change per 1% frequency change |
| Type | Dry |
| Phase | Single Phase |
| Model No | PCVT-0100 |
| Type of Product | Constant Voltage Transformer |
| Power Rating | 100 VA |
| Country of Origin | India |
| Manufacturer | PEQVI |
Features
- High reliability with no semiconductors or moving parts for long life.
- Instant voltage regulation and smooth sine-wave output.
- Excellent line isolation suppresses surges and transients.
- Compact, light, and suitable for desktop or panel use.
- Efficient thermal design for continuous operation.
- Built-in short-circuit and overload protection.
- Low magnetic noise for sensitive environments.
Recommended Applications / Usage
- Computers, telecom units, and data terminals
- Testing benches and laboratory instruments
- Audio-visual systems and recording equipment
- Diagnostic tools in dental and optical clinics
- Small automation or control systems
Recommendations
- Install the CVT in a well-ventilated, vibration-free area.
- Keep away from sensitive devices affected by magnetic fields (e.g., monitors, sensors).
- Connect through a 3-pin socket with proper earthing.
- Switch ON the CVT first, then the connected device.
- Ensure generator frequency remains within 50 ± 1 Hz.
- Switch OFF when not in use; avoid high inductive loads like motors.
