Description

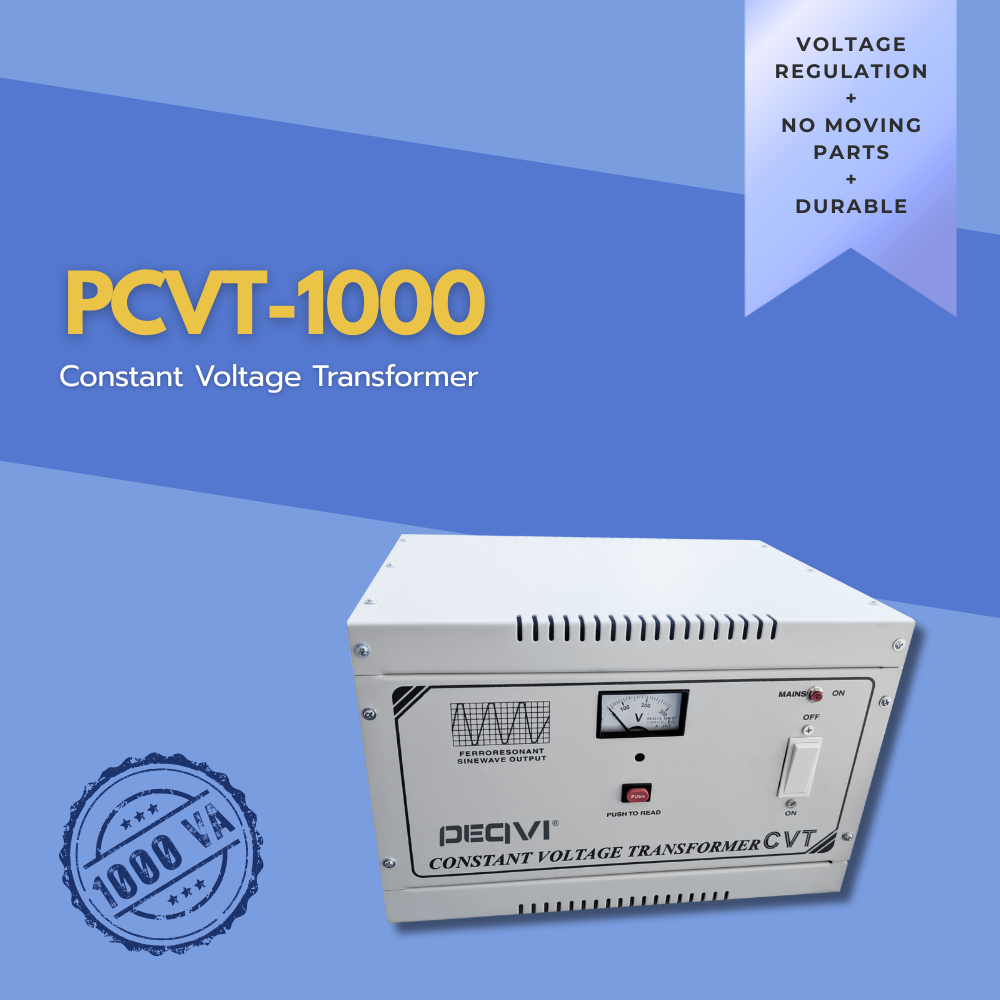

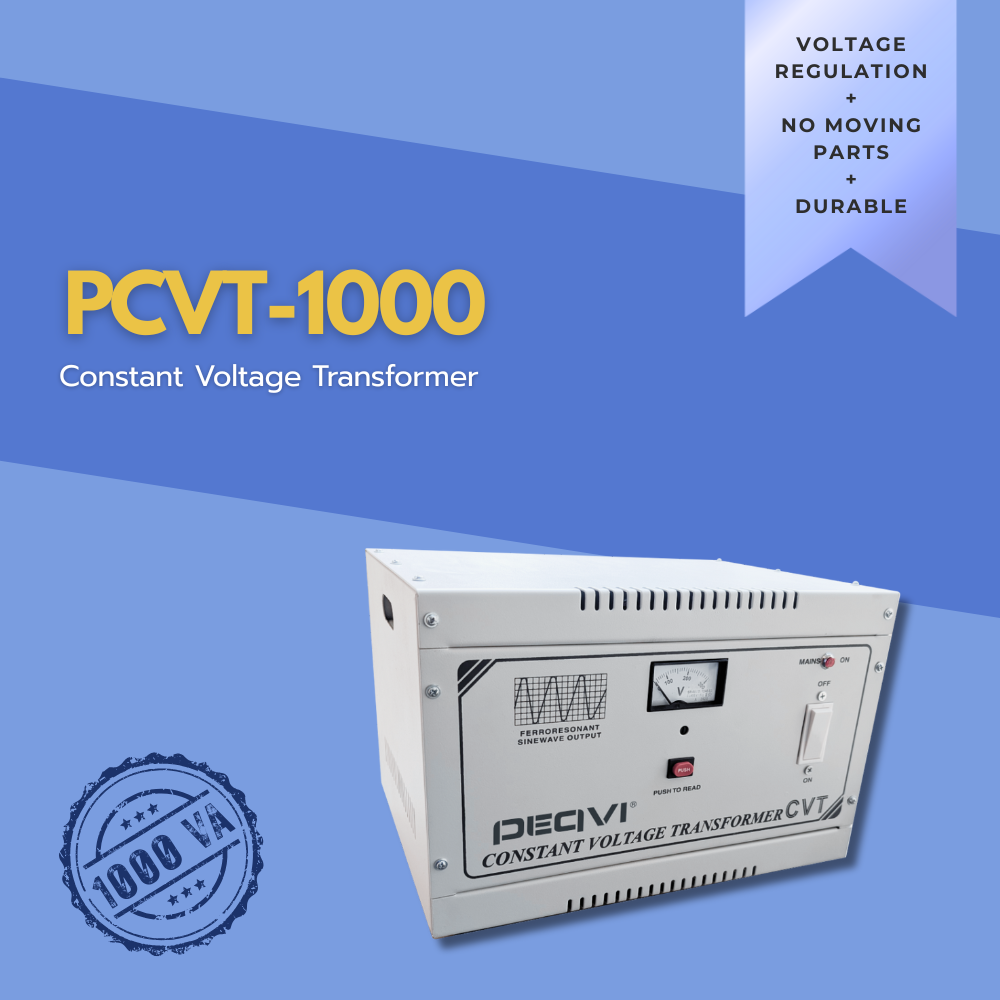

xThe PEQVI Constant Voltage Transformer 1 KVA (Model PCVT-1000) is built for dependable power regulation in offices, clinics, and industrial control panels. It maintains a perfectly stable 230 V output for sensitive instruments, laboratory analyzers, dental chairs, and telecom systems. Its rugged design ensures quiet, efficient, and distortion-free performance under variable input and load conditions.
With 1 KVA capacity, this single-phase CVT provides clean isolation, fast response, and excellent transient suppression—ideal for equipment demanding high accuracy and reliability.
Technical Specifications
| Type | Dry |
|---|---|
| Frequency | 50 Hz ± 1% |
| Input Voltage | 180–260 V at rated load |
| Output Voltage | 220V ± 1% |
| Response Time | 30 milliseconds |
| Efficiency | Approx. 90% under full load |
| Output Waveform | Sinusoidal |
| Waveform Distortion | < 4% under full load |
| Load Power Factor | 0.75 lag to 0.9 lead |
| Ambient Temperature | -5 °C to +50 °C |
| Phase | Single Phase |
| Model No. | PCVT-1000 |
| Power Rating | 1 KVA |
| Country of Origin | India |
| Manufacturer | PEQVI |
Features
- No semiconductors or moving parts for high reliability.
- Excellent line and load regulation with sine-wave output.
- Superior transient and spike suppression.
- Intrinsic current limiting and short-circuit protection.
- Compact, low-noise, and thermally efficient construction.
- Ideal for dental, laboratory, and telecom applications.
Recommendations
- Install the CVT away from magnetic or calibration devices.
- Connect through a 3-pin socket with proper earthing.
- Switch ON CVT first, then devices; reverse sequence for shutdown.
- Do not use with inductive loads such as motors or compressors.
- Switch OFF when idle to extend lifespan.
