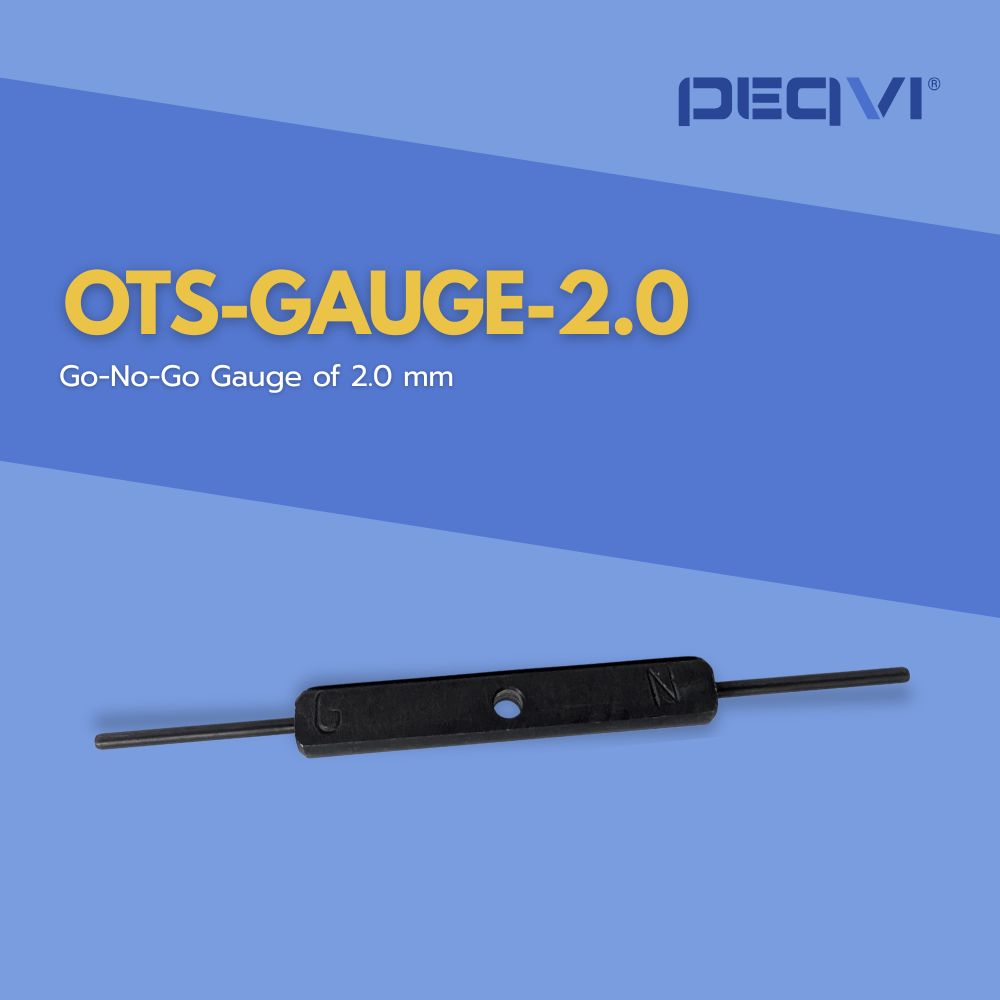

Mechanical Go-No-Go Gauge – 2.0 mm for Oil BDV Test Set (ASTM D1816)

The PEQVI Mechanical Go-No-Go Gauge (2.0 mm) is designed for checking and setting the electrode gap in Oil Breakdown Voltage (BDV) Test Sets. It provides a quick and convenient method for verifying the standard 2.0 mm electrode spacing before conducting dielectric breakdown tests on insulating oils.

The 2.0 mm electrode gap is commonly used in insulating oil testing in accordance with ASTM D1816. This gauge is used to verify and set the required electrode spacing prior to testing.

Key Features

• Precision 2.0 mm Go-No-Go Gauge
• Designed for electrode gap verification
• Suitable for Oil BDV Test Sets using a 2.0 mm electrode spacing
• Helps verify the electrode gap specified for ASTM D1816 testing
• Simple and easy to use
• Reusable mechanical gauge

Applications

• Transformer Oil BDV Test Sets
• ASTM D1816 dielectric breakdown testing of insulating oils
• Electrical Testing Laboratories
• Transformer Manufacturers
• Power Utilities and Maintenance Facilities
• Oil Testing & Quality Control Laboratories

Specifications

• Gauge Type: Mechanical Go-No-Go Gauge
• Gap Size: 2.0 mm
• Application: Electrode gap verification for Oil BDV Test Sets
• Reference Standard: ASTM D1816

Note: Product appearance, finish, dimensions, and design may differ from the images shown. Images are for illustrative purposes only.
