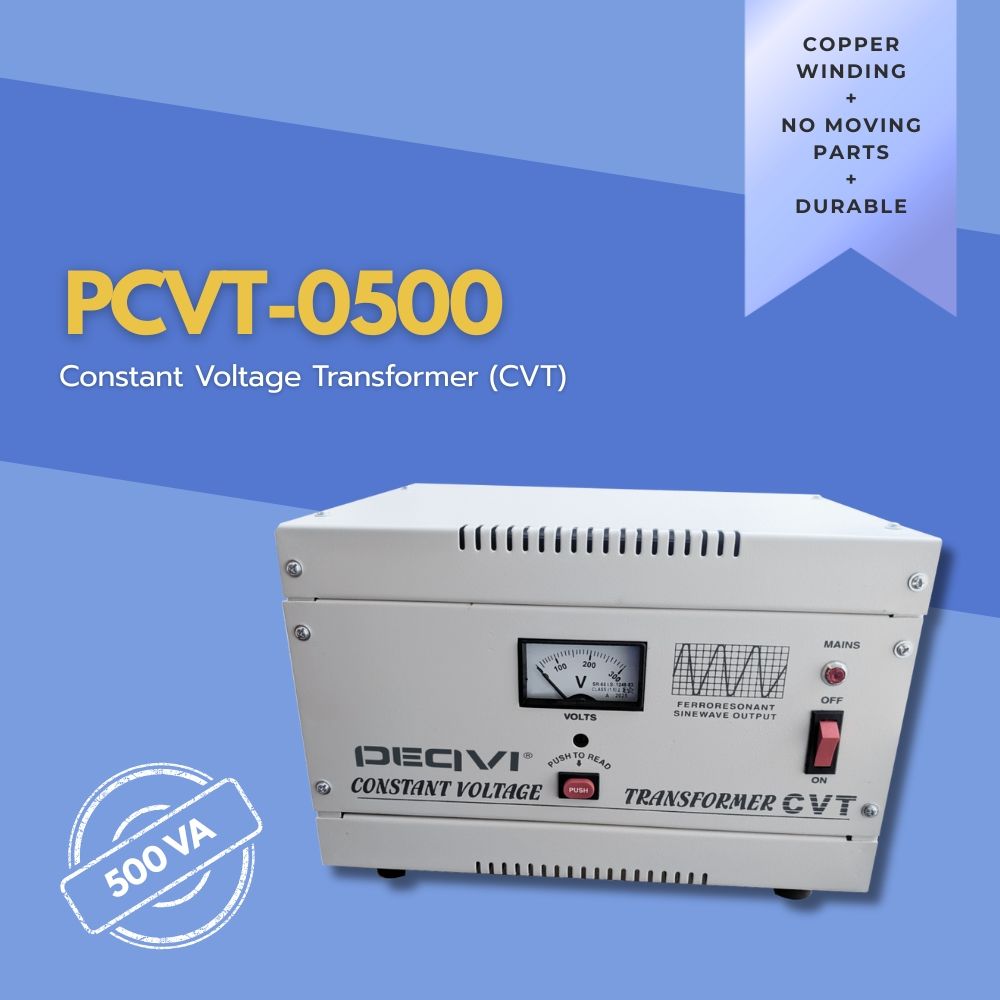

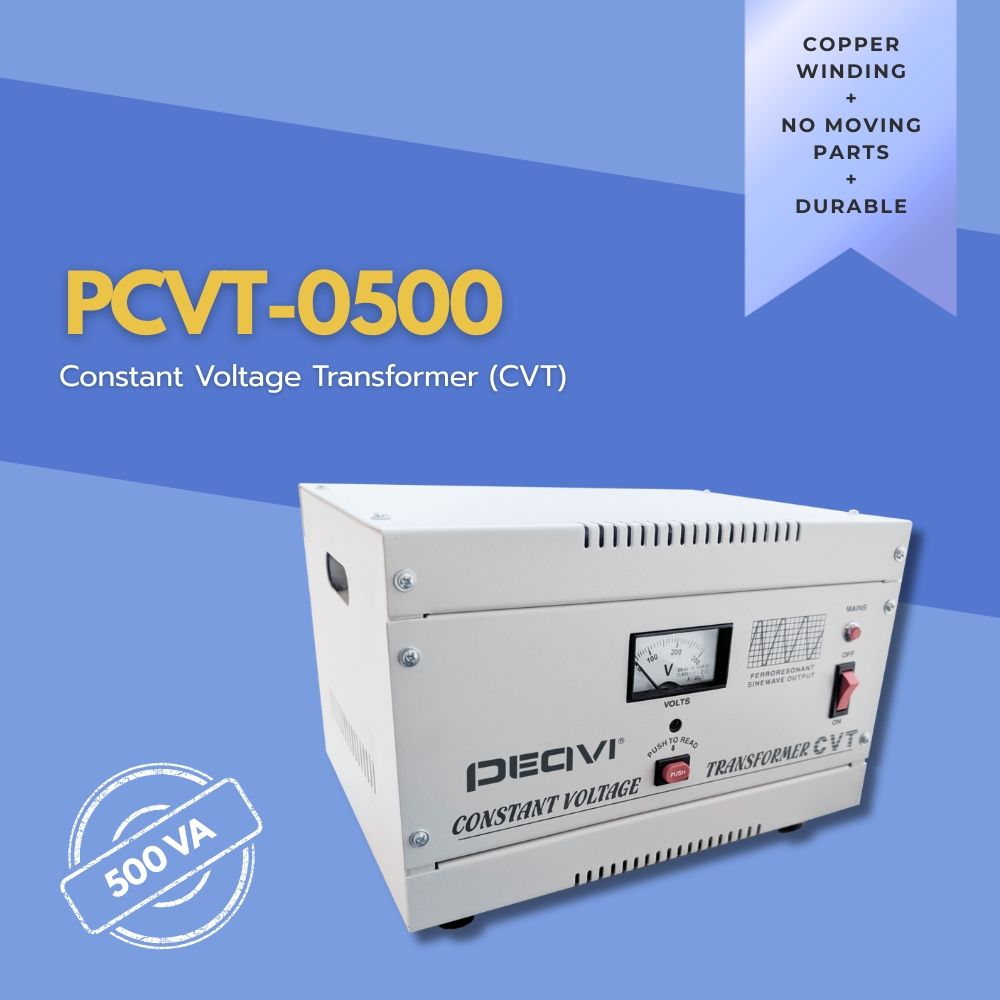

xThe PEQVI Constant Voltage Transformer Single Phase 500 VA (model PCVT-0500) provides stable and reliable power for sensitive electronics in professional and industrial environments. With a 500 VA rating, this transformer ensures consistent output voltage, protecting equipment like servers, laboratory instruments, medical devices, and network systems from voltage fluctuations.
Designed for robust performance, the PCVT-0500 offers excellent isolation from mains transients and spikes, maintaining clean sinusoidal output under varying load conditions. Its compact and durable design makes it suitable for data centers, automation systems, clinics, and any setting where precision power is essential.
Technical Specifications
| Specification | Details |
|---|---|
| Input Voltage | 180–260 V (at rated load) |
| Output Voltage | 220V ± 1% |
| Frequency | 50 Hz ±1% |
| Response Time | 30 milliseconds |
| Efficiency | Approx. 90% at full load |
| Output Waveform | Sinusoidal |
| Waveform Distortion | <4% under full load |
| Load Power Factor | 0.75 lag to 0.9 lead |
| Ambient Temperature | -5°C to 50°C |
| Effect of Line Frequency | ~1.5% change in output per 1% change in line frequency |
| Type | Dry |
| Phase | Single Phase |
| Model No | PCVT-0500 |
| Type of Product | Constant Voltage Transformer |
| Power Rating | 500 VA |
| Country of Origin | India |
| Manufacturer / Packer / Importer | PEQVI |
Features
- Robust spray/powder-coated metallic chassis ensures durability and long-term use.
- High reliability with no semiconductors or moving parts for maintenance-free operation.
- Delivers a near-sine wave output regardless of input voltage variations.
- Instant voltage regulation for precise protection of sensitive devices.
- Output is highly isolated from mains, suppressing spikes and transients.
- Handles short-term overloads without compromising performance.
- Built-in current limiting and short-circuit protection for safety.
- Supports a wider input voltage range for loads below rated capacity.
- Suitable for environments with power fluctuations, maintaining stable voltage for critical equipment.
Recommended Applications / Usage
PEQVI CVTs are ideal for modern environments requiring precise mains supply:
- Dental and medical clinics (digital imaging, diagnostic instruments, lab analyzers)
- Opticians and eye-care centers (autorefractors, lens meters, diagnostic tools)
- Data centers, IT offices, and network hubs (servers, switches, workstations)
- Telecom systems and VoIP networks
- Audio-visual studios and broadcasting equipment
- Industrial automation (PLCs, control panels, robotics)
- Security and surveillance systems (CCTV, access control)
- Financial institutions (POS terminals, ATMs)
- Smart home and IoT devices requiring stable voltage
Recommendations
- Place the CVT away from sensitive electronic devices such as computers, servers, medical instruments, networking devices, AV equipment, and lab analyzers.
- Connect the CVT through a 3-pin socket for proper earth connection.
- Switch ON the CVT first, then connected equipment; turn off equipment first when powering down.
- For generator supply, ensure frequency is within 50 ±1 Hz.
- Switch OFF the CVT when not in use.
- Do not use the CVT for high inductive loads such as motors.
